Remote access to OA/ERP/CRM office system
Update Date：2025-05-09 14:40:31
Most enterprises will set up all kinds of project management office systems (such as OA, ERP, CRM, cash register system, etc.) for operation and management to improve the office efficiency of employees and the management level of enterprises. With the continuous development and expansion of the company, branches, offices, production bases, storage centers and other branches will be set up across the country and even around the world, and there will also be mobile office workers who need to be on vacation at home and on business trips. * * Aweshell intranet penetration * * can be easily and easily deployed at low cost to realize external security access to various project management office systems built by enterprises.
The following takes Kingdee ERP as an example to introduce how to create a "website application" mapping on the Aweshell management platform to achieve external access to the ERP office system built by the enterprise.
1. Service Construction
The industry headquarters needs to deploy Kingdee office system on the server and ensure that the equipment in the local area network can be successfully accessed locally through the intranet IP of the server. The following figure shows the web version of Kingdee office system. The * * IP:192.168.1.10 * , * port number: 80 * * of the office system intranet access. !
2. Add a website application class map

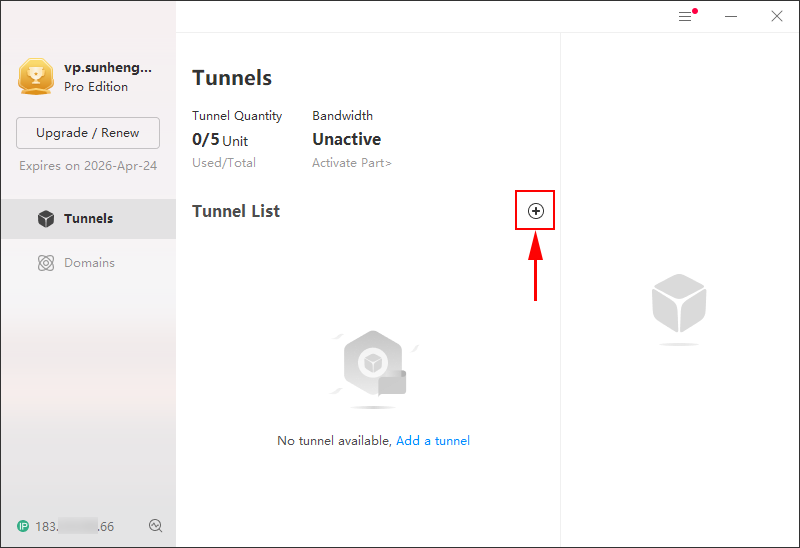

(1) Install and log in the Aweray Aweshell client on the server where the website is deployed or on the intranet terminal device that can access the deployment website. On the [Intranet Penetration] of the client, click " + " to add a mapping and jump to the Aweshell management platform to fill in the new mapping information. !

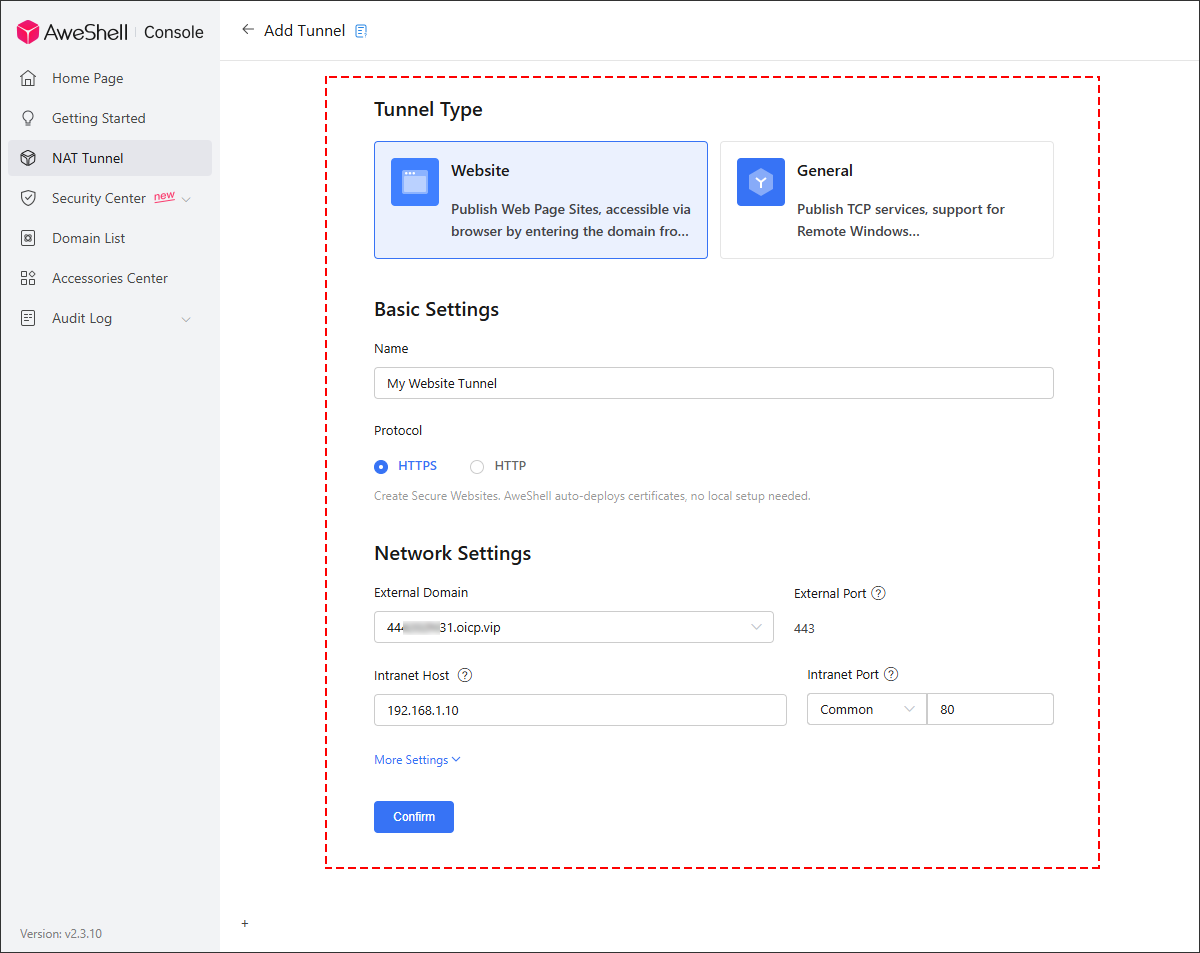

(2) New website application mapping
| Content | Description | |
|---|---|---|
| Mapping Settings | Website Application | suitable for web sites, support 80/443 port external network through the browser to enter the domain name can be directly accessed |
| Basic Settings | Application name | Custom mapping name |
| Mapping protocol | Select HTTPS/HTTP according to the actual situation, and recommend select HTTPS (HTTPS is selected in this example) | |
| Internal and external network settings | Extranet domain name | Select the domain name of the encryption shell under the account or the domain name for the HTTPS certificate. |
| Extranet port | Default is 443 and cannot be changed | |
| Intranet host | Intranet IP address corresponding to the website | |
| Intranet port | Intranet port number corresponding to the website | |

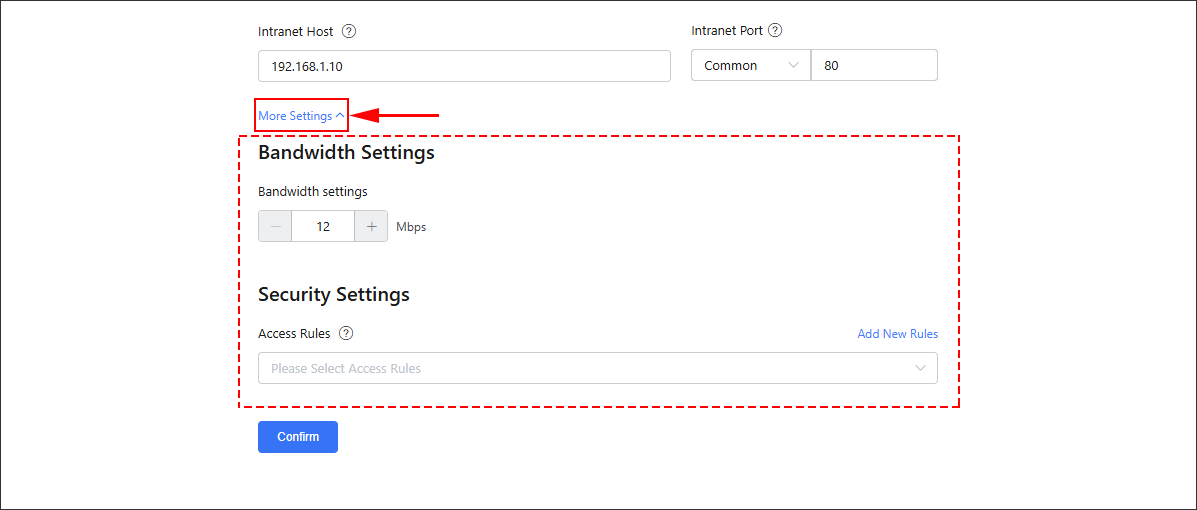

If you have bandwidth or security requirements, you can click [More Settings] to set the relevant settings.
| Content | Description | |
|---|---|---|
| Bandwidth Settings | Bandwidth | By default, the corresponding bandwidth is allocated according to the account level, or you can pay extra according to actual needs. |
| Nighttime bandwidth acceleration | from 8:00 to 8:00 the next day, the bandwidth speed is increased by 100, and the speed is not less than 5Mbps; The larger the bandwidth base, the faster the night | |
| Security Settings | Access rules | supports mapping and setting access passwords for secondary verification access; supports setting specified time, area, IP, browser, system and other methods to apply access restrictions [**click to view access control help tutorial**] |

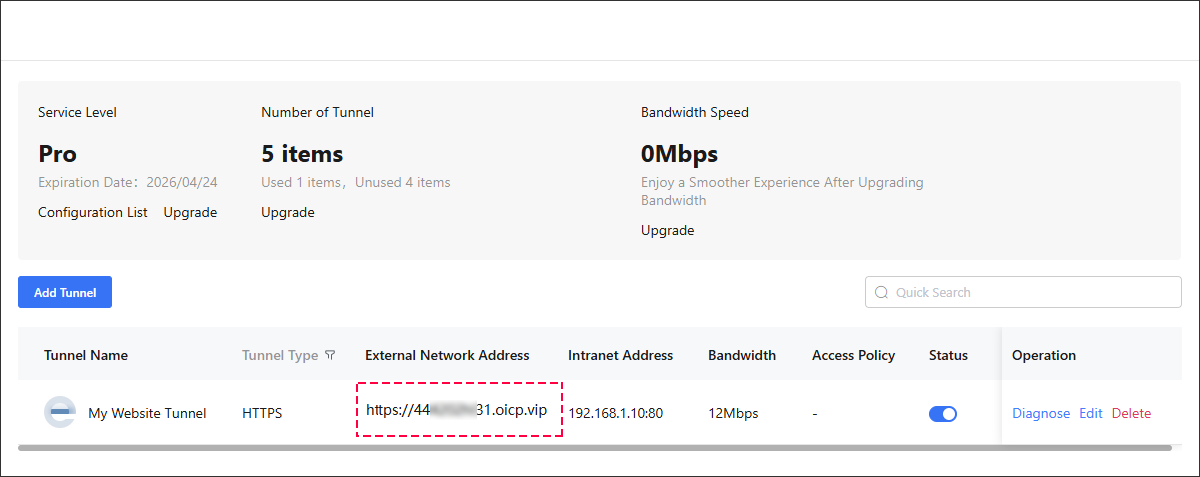

(3) After the mapping is added, the deployed website can be accessed using the external network address. !
3. Remote access to internal system from external network
Extranet personnel can enter the above extranet address on computers, mobile phones and other terminal devices to access their websites. !
