Remote access to SSH services
Update Date：2025-05-28 16:31:32
Aweshell external network penetration can realize cross-network SSH network terminal equipment, and users can use Aweshell internal network penetration to realize Internet SSH connection terminal.
The following windows 10 Professional Edition system is used as an example to describe how to implement an Internet SSH connection to a Windows computer.

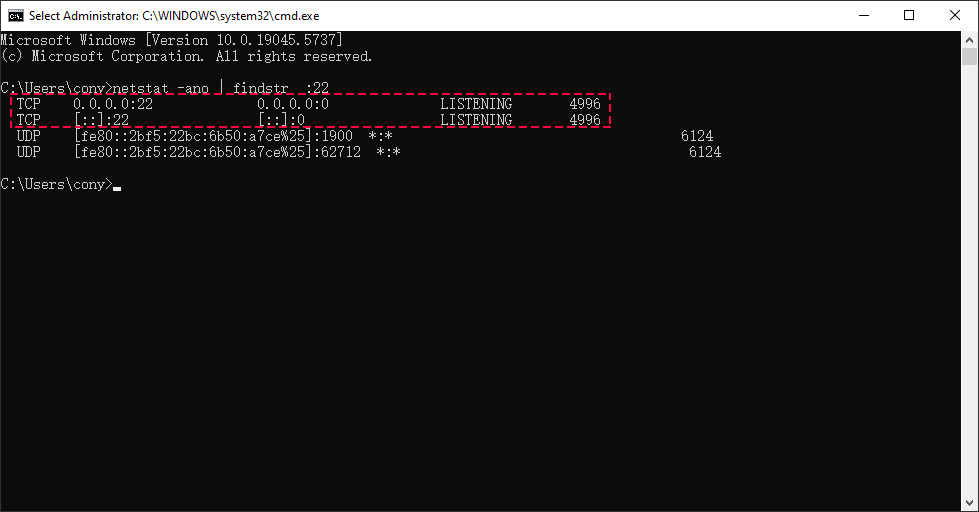

1. Open the SSH port
The computer should ** open "SSH service" **, that is, open the SSH service port number 22 of the computer, allowing other devices to connect and log in to the computer through SSH.
2. Add regular Application Class Map
(1) On the computer with remote desktop turned on, install and log in the Aweray Aweshell client. On the [Intranet Penetration] of the client, click " + " to add a mapping and jump to the Aweshell management platform to fill in the new mapping information.

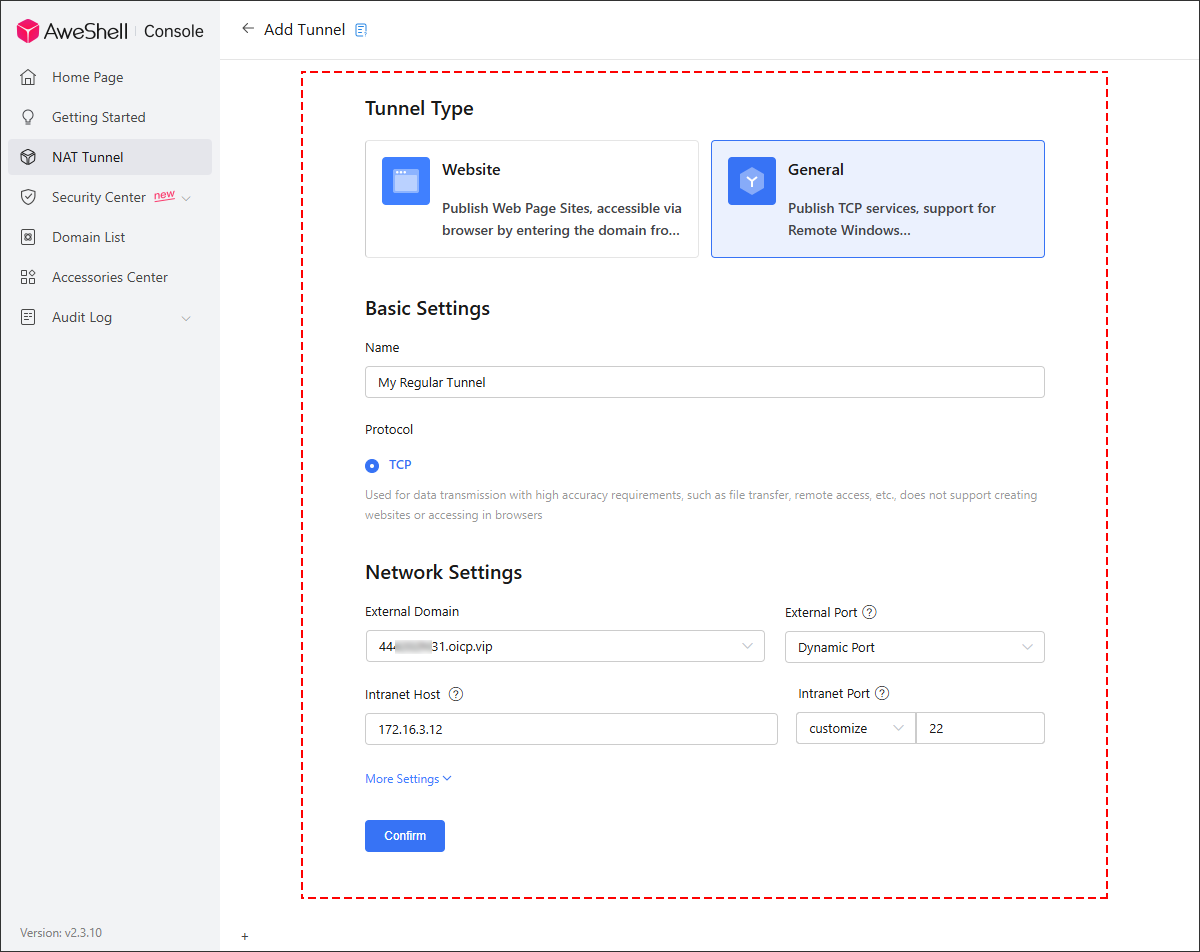

(2) Add regular application mapping
| Content | Description | |
|---|---|---|
| Mapping Settings | regular application | Suitable for remote desktop, SSH, database, online games and other common TCP applications, does not support browser access |
| Basic Settings | Application name | Custom mapping name |
| Mapping protocol | Select TCP | |
| Internal and external network settings | Extranet domain name | Select the domain name for external SSH access |
| Extranet port | Dynamic port, automatically assigned port number; fixed port number can be selected according to the actual situation | |
| Intranet host | The IP address obtained by the computer that opens the SSH service | |
| Intranet port | SSH service port number, 22 | |

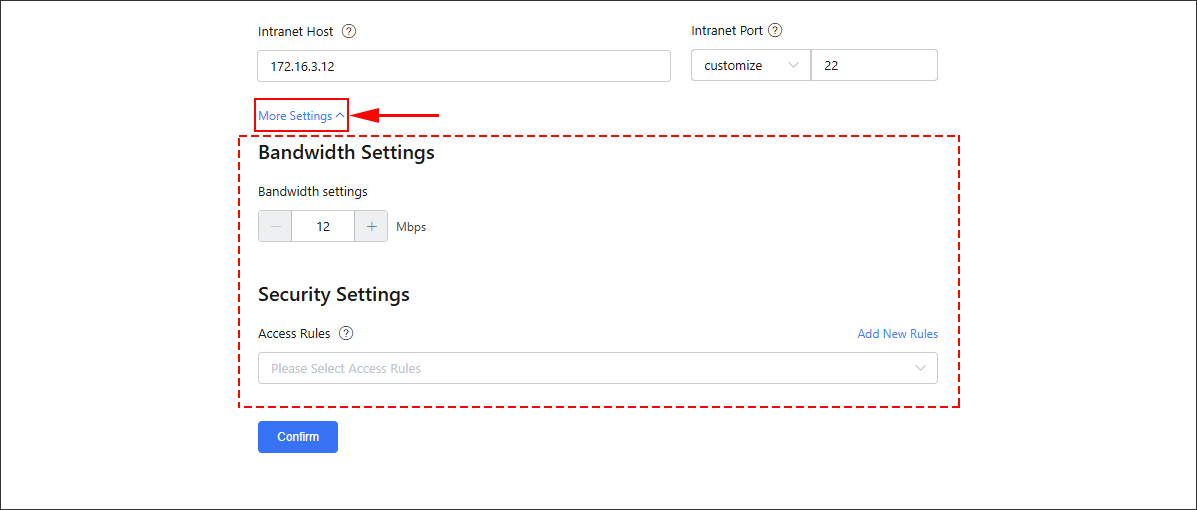

If you have bandwidth or security requirements, you can click [More Settings] to set the relevant settings.
| Content | Description | |
|---|---|---|
| Bandwidth Settings | Bandwidth | By default, the corresponding bandwidth is allocated according to the account level, or you can pay extra according to actual needs. |
| Nighttime bandwidth acceleration | from 8:00 to 8:00 the next day, the bandwidth speed is increased by 100, and the speed is not less than 5Mbps; The larger the bandwidth base, the faster the night | |
| Security Settings | Access rules | Support mapping setting access password for secondary verification access; Support setting specified password, IP, time, browser, system and other methods to apply access restriction [**Click to view access control help tutorial**] |

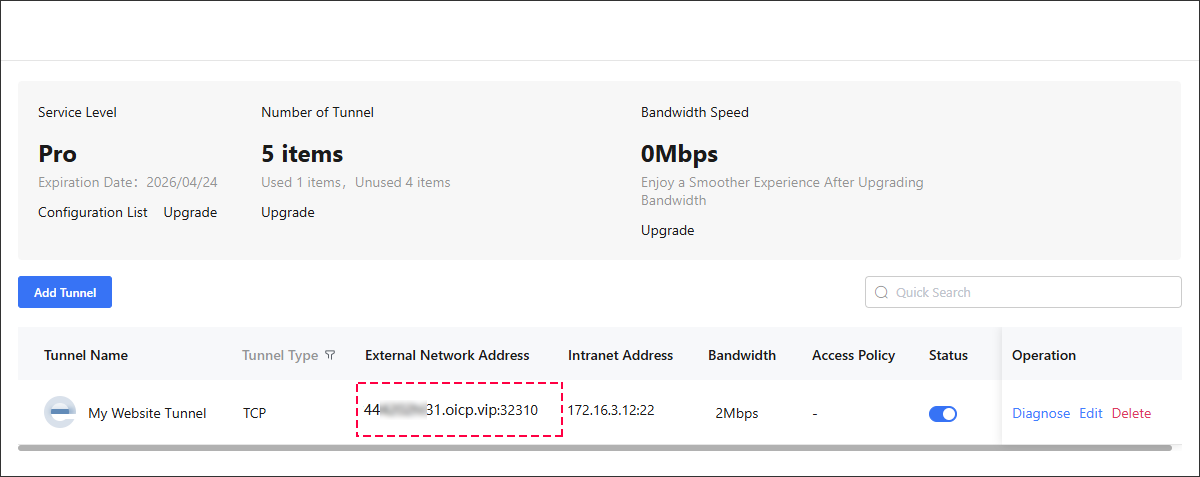

(3) After the mapping is added, the computer with SSH service turned on can be accessed through the external network address.
3.SSH remote connection terminal
Copy the external network address and paste it into the command prompt window, and execute "user name @ external network address-p external network port number" to connect to the computer with SSH service turned on.
