The 3389 remote desktop service of the Windows system allows users to operate the computer remotely as if they were operating this machine with simple configuration, and the picture quality and clarity are the same as that of this machine. However, 3389 remote desktop is only used within the LAN, the scope of application is limited.

Xiaobian here to share a tool: Aweshell intranet penetration software, use it to achieve intranet penetration. The Aweshell does not rely on the public network IP network environment, and the setup steps are simple. Employees can easily penetrate the internal network Aweshell configuring the local network and connect the external network to the company's office computer.

here with Aweshell software to teach you how to achieve remote access 3389 remote desktop.

1. Open Remote Desktop (windows 10 Professional Edition System)

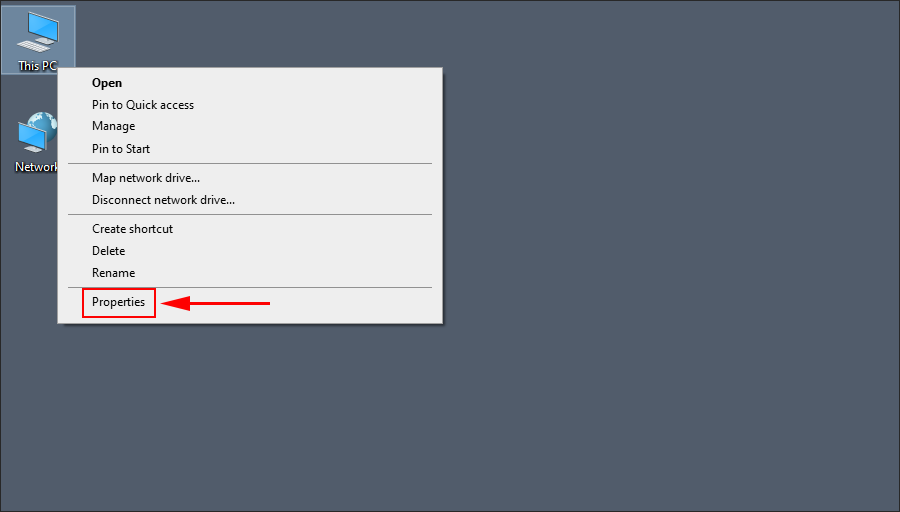

(1) The employee's computer should turn on the ** "Remote Desktop" function **, that is, allow other devices to log in to the computer through remote desktop. Right-click on the desktop ** [this computer] icon-> [properties] ** (home version system does not support remote desktop function).

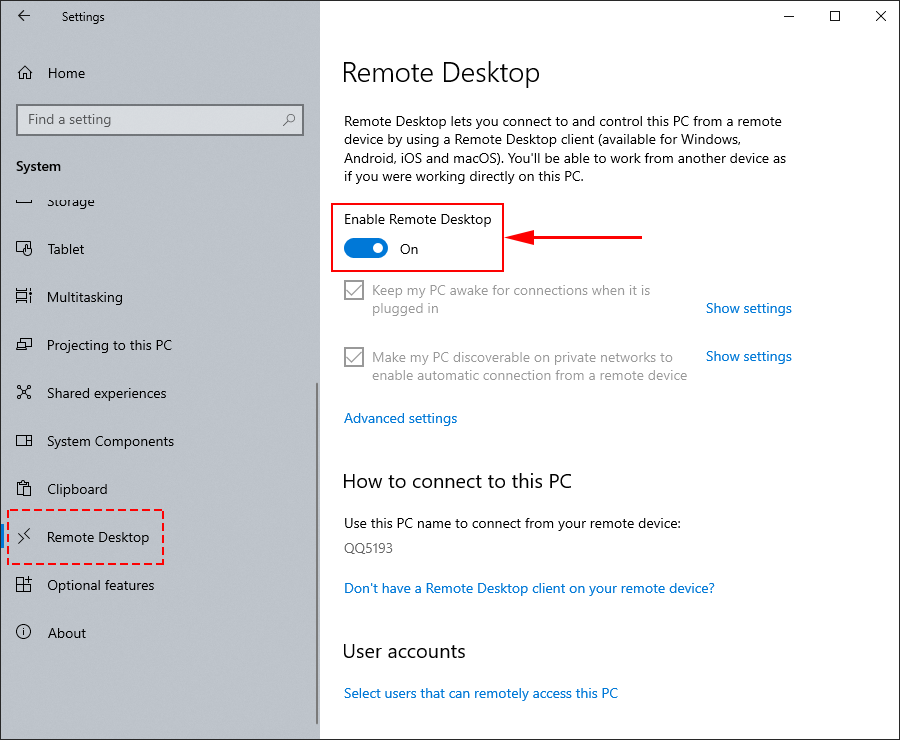

(2) In the function on the right side of the setting homepage, select the switch of [Remote Desktop]-> [Enable Remote Desktop].

(4) The remote desktop was successfully opened, and then we need to find a computer in the local area network to test whether the remote desktop has been successfully opened.

Steps:

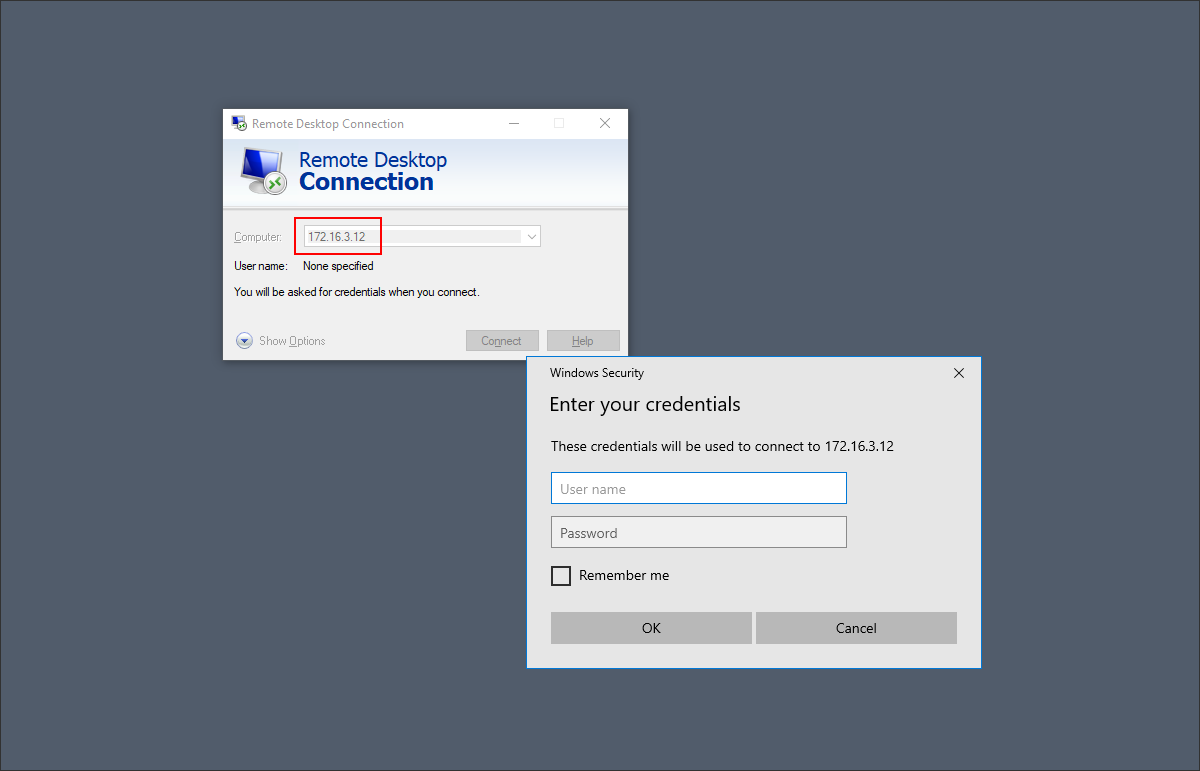

① In the search tool on the computer taskbar, enter the command " mstsc " and press Enter to call up the remote desktop connection window
② In the " Computer " address bar, enter the intranet IP of the computer that has the remote desktop function turned on
③ The login window table requiring the Windows user name and password of the target computer appears. The remote desktop function was successfully opened.

"Note": The default port number of Win Remote Desktop is 3389. If you need to modify it, you can change it to another in the system registry. If the port number is not the default 3389, you need to add the port number after the IP address when connecting to the remote desktop.

(5) If the remote desktop function has been confirmed to be turned on, but other devices in the LAN cannot be connected, you can check whether the firewall of the computer allows remote desktop access.

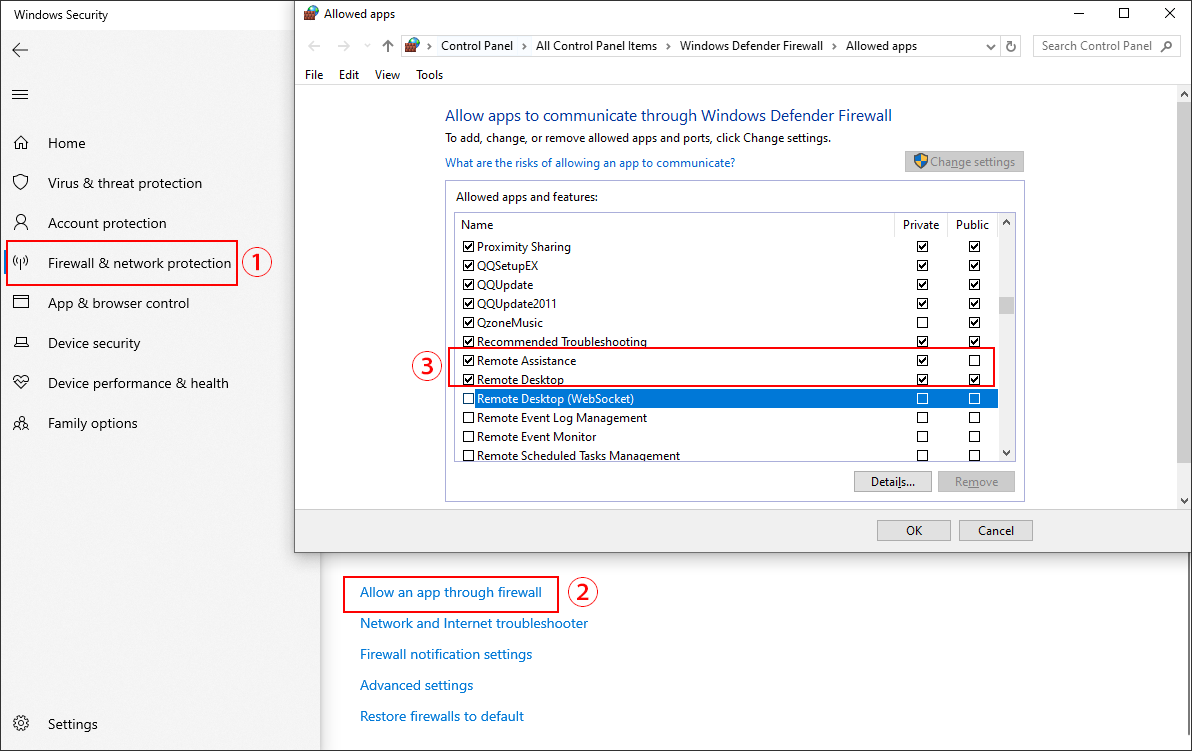

① Entry Path: [Windows Settings]-> [Update and Security]-> [Windows Security Center]-> [Firewall and Network Protection]-> [Allow Applications to Pass Through Firewall]
② Click * * "Change Settings" * * in the upper right corner, and in the allowed applications and functions window, confirm that * * "Remote Assistance" and "Remote Desktop" * * are checked.

Windows the remote desktop is successfully opened, the following are the Aweshell configuration steps.

2. Configure Aweshell

(1) download and install the Aweshell software on the company's office computer.

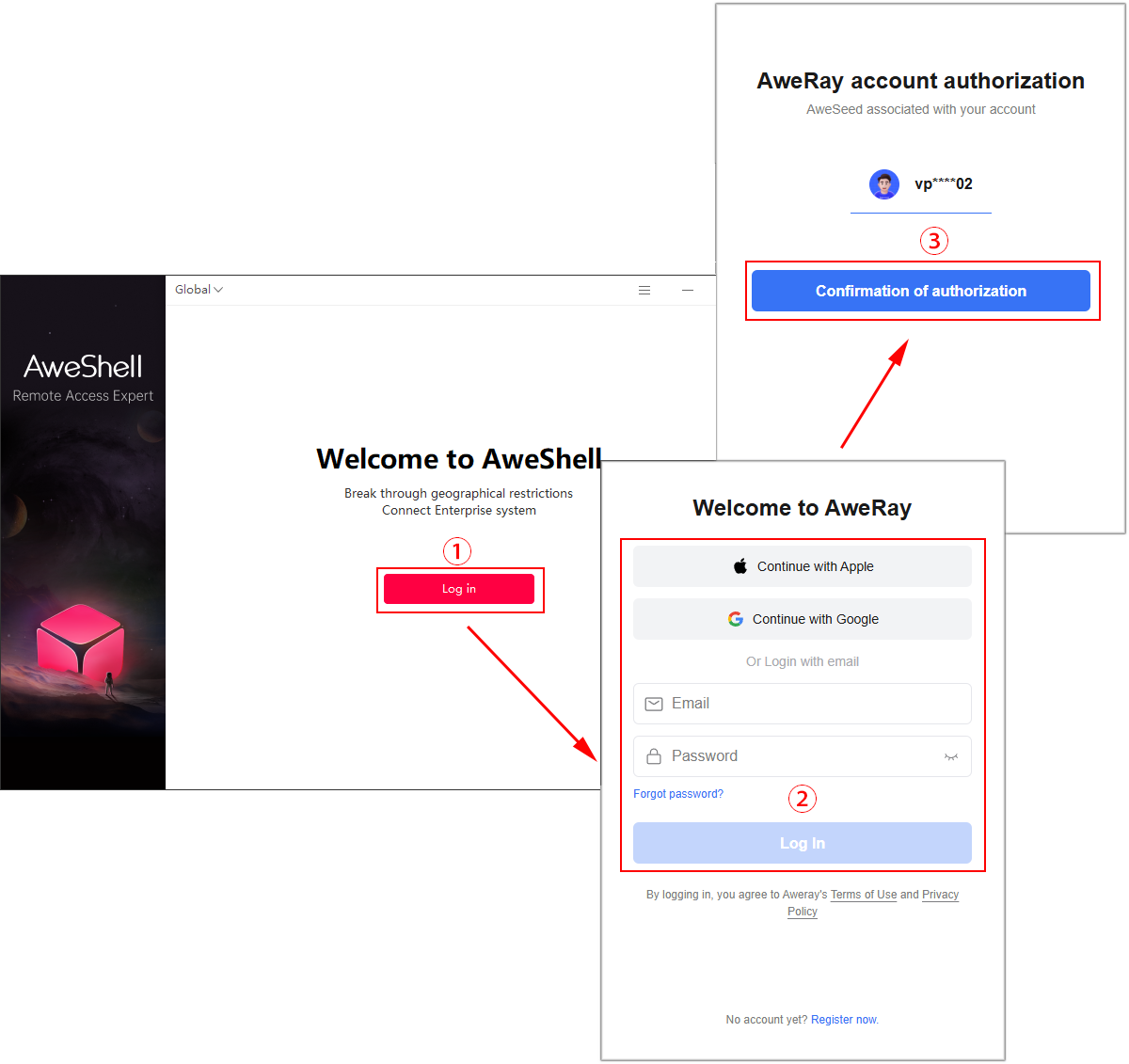

(2) Run the Aweshell client and enter the Aweshell account password to log in in the login window.

(3)The Aweshell supports setting mappings on the client or Web management platform. The client settings are shown in the following figure. Click [+] on the interface to jump to Aweshell management platform to add mappings.

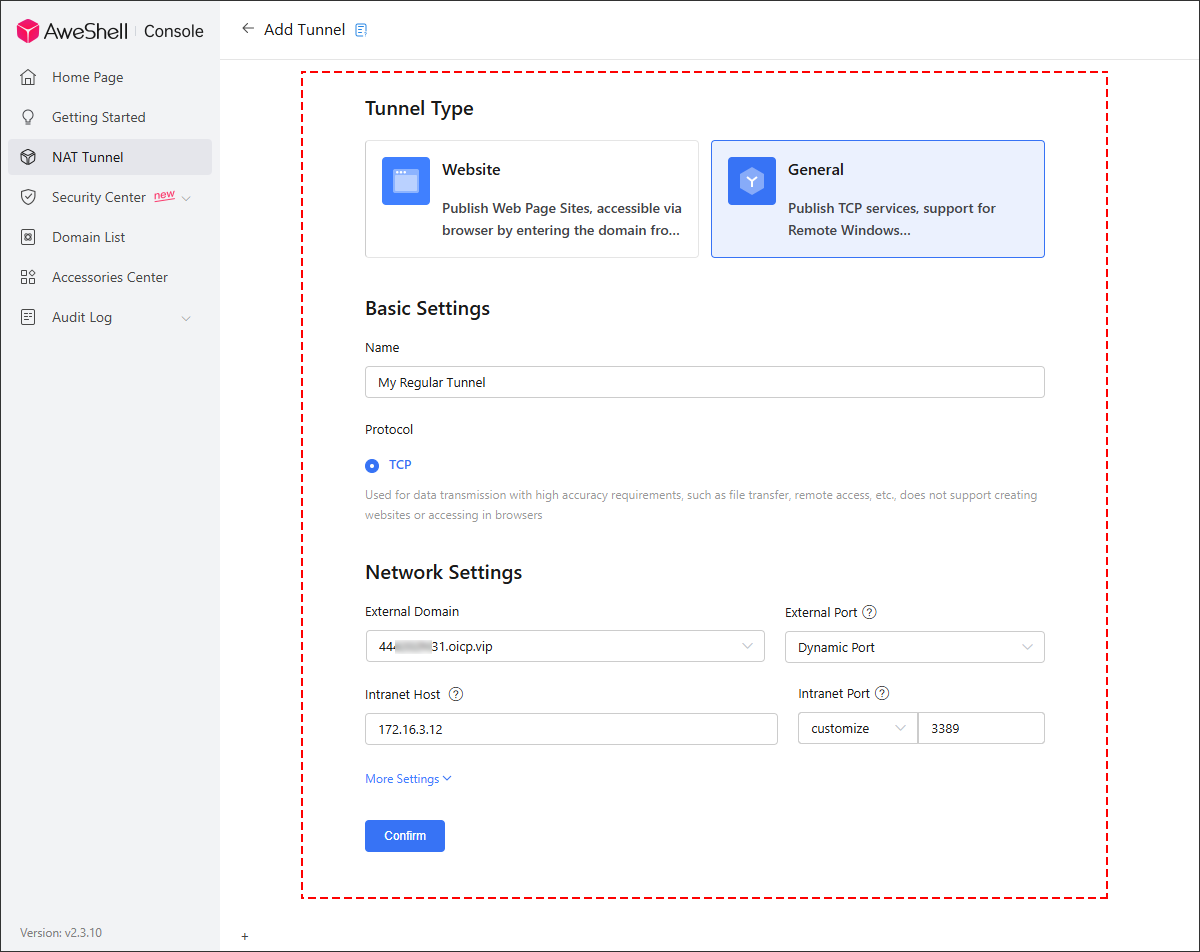

(4) Fill in the mapping information of the private cloud disk:

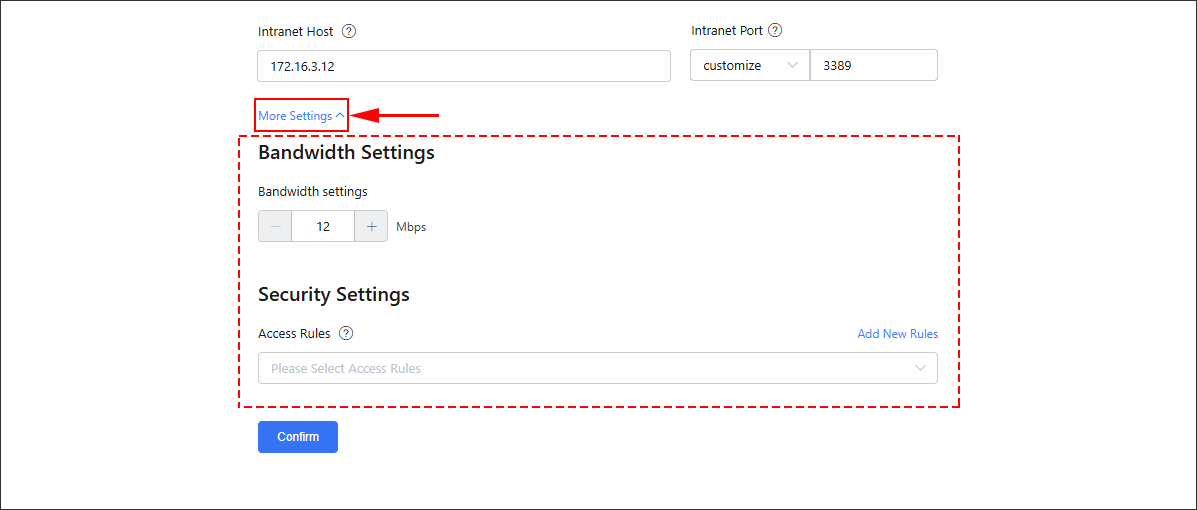

If you have bandwidth or security requirements, you can click [More Settings] to set the relevant settings.

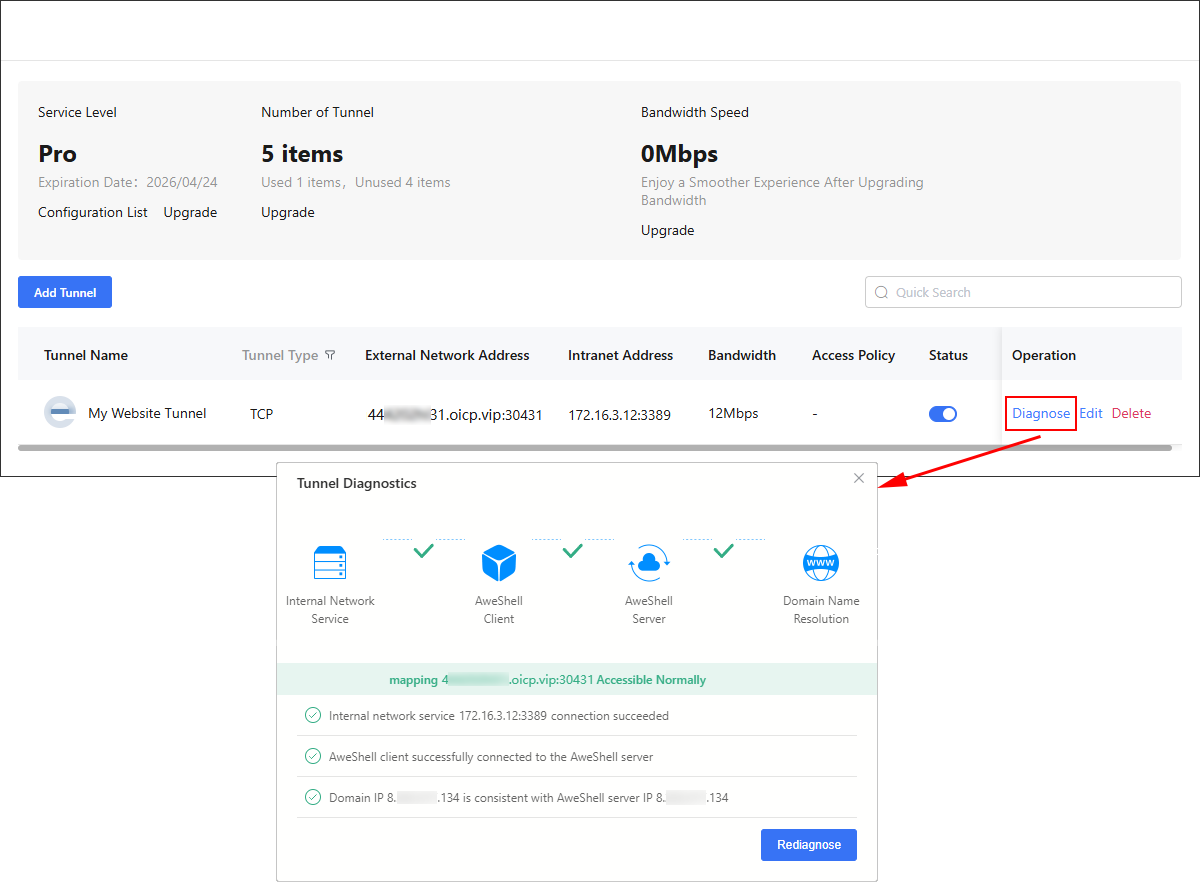

(6) The mapping is completed, the external network access address is generated, and the diagnostic information shows that the mapping is in a normal accessible state.

! Note:
① The Aweshell program maps local intranet services to achieve extranet access
② If remote login is Aweshell, the set local intranet service mapping will be invalid
③ If services in multiple locations need to be published, it is recommended to use multiple accounts for mapping operations

3. Test Access

(1) At this time, we are looking for an external network computer to test access. In the taskbar search box, enter the command " mstsc " and enter to call up the remote desktop connection window.
(2) Enter the external network access address (domain name + port) generated by Aweshell mapping in the computer address bar, and click * * "Connect" * (Note: Remember not to miss the colon and port number after the domain name, otherwise you will not be able to connect to the remote desktop). Then enter the user name and password of the remote computer, and click OK.

(3) The remote desktop connection is successful. You can operate the company's office computer like this machine, and you can edit and copy files remotely.

Attention
When using Aweshell mapping remote desktop or SQL application service, to avoid attacks, we recommend that you do not use common names such as Administrator and sa as the user name, and set a strong password.

As a senior brand service provider of domestic intranet penetration and dynamic domain name resolution NAT-DDNS, Aweshell is committed to providing solutions for major industries and application scenarios. If the application services you publish require higher access speed, bandwidth, and concurrency, you can use Aweshell related enterprise services.
