The Aweshell 8 client is a tool for remote access and management of devices. It does not need to rely on public IP, and is easy to use, highly secure, and supports multi-platform use. Provides users with a simple and secure way to remotely access and manage devices. Both individual users and enterprise users can easily realize remote access and management of devices through the client.
The Aweshell 8 client can perform functions such as remote file, port, and domain name management. Strong data transmission stability, high security, easy to build various mapping scenarios.

The following is a detailed introduction to the use of Aweshell 9.

1. Download, Installation, and Login

1.1 Download

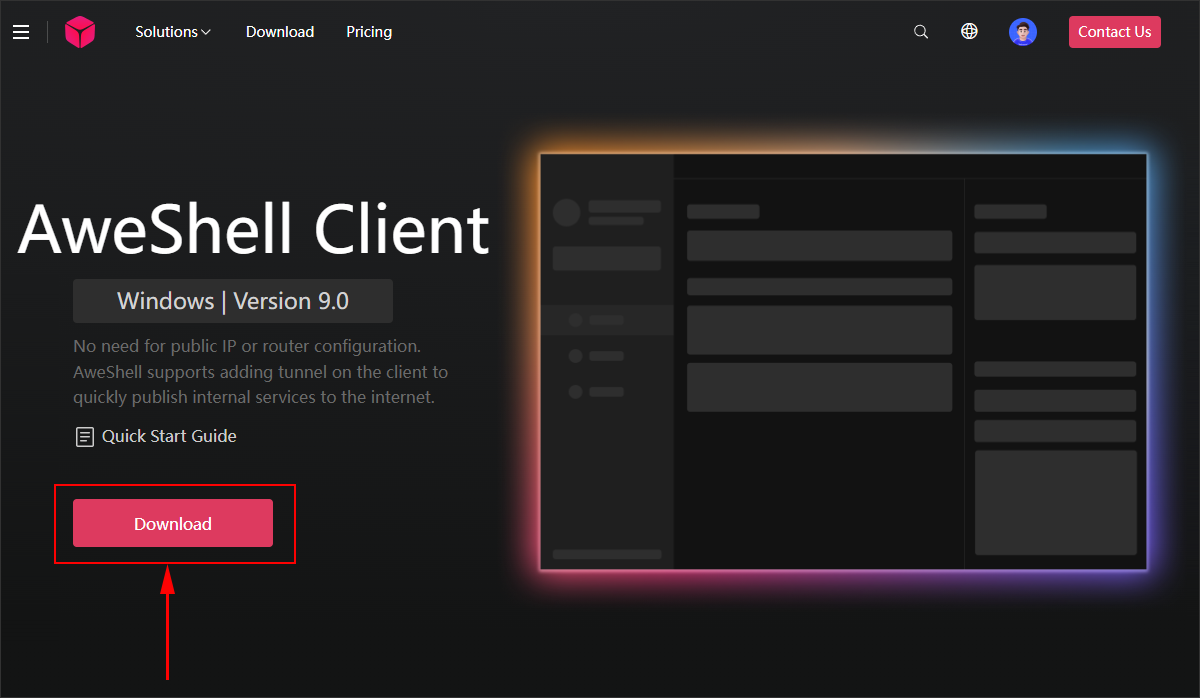

Enter the download page of Aweshell official website and click "free download" to download V9.0 version client [click download]].

1.2 installation

① Double-click to run the installation program and enter the installation wizard
② Determine the installation location of the program, click < **Install Now** >, and wait for the program to be installed automatically.

1.3 login

After the Aweshell is installed, enter the Aweray account number and password in the login window to log in.

2. Intranet penetration

2.1 client add mapping

Open the Aweshell client and click the <+> button in the [Intranet Penetration] interface.

2.1.1 Website

Fill in the mapping information of the private cloud disk:

Content		Description
Mapping Settings	Website Application	suitable for web sites, support 80/443 port external network through the browser to enter the domain name can be directly accessed
Basic Settings	Application name	Custom mapping name
	Mapping protocol	Select HTTPS/HTTP according to the actual situation, and recommend select HTTPS (HTTPS is selected in this example)
Internal and external network settings	Extranet domain name	Select the domain name of the encryption shell under the account or the domain name for the HTTPS certificate.
	Extranet port	Default is 443 and cannot be changed
	Intranet host	Intranet IP address corresponding to the website
	Intranet port	Intranet port number corresponding to the website

If you have bandwidth or security requirements, you can click [More Settings] to set the relevant settings.

Content		Description
Bandwidth Settings	Bandwidth	By default, the corresponding bandwidth is allocated according to the account level, or you can pay extra according to actual needs.
	Nighttime bandwidth acceleration	from 8:00 to 8:00 the next day, the bandwidth speed is increased by 100, and the speed is not less than 5Mbps; The larger the bandwidth base, the faster the night
Security Settings	Access rules	supports mapping and setting access passwords for secondary verification access; supports setting specified time, area, IP, browser, system and other methods to apply access restrictions [ **click to view access control help tutorial** ]

2.1.2 General

Add regular application mapping

Content		Description
Mapping Settings	regular application	Suitable for remote desktop, SSH, database, online games and other common TCP applications, does not support browser access
Basic Settings	Application name	Custom mapping name
	Mapping protocol	Select TCP
Internal and external network settings	Extranet domain name	Select the domain name for external SSH access
	Extranet port	Dynamic port, automatically assigned port number; fixed port number can be selected according to the actual situation
	Intranet host	The IP address obtained by the computer that opens the SSH service
	Intranet port	SSH service port number, 22

If you have bandwidth or security requirements, you can click [More Settings] to set the relevant settings.

Content		Description
Bandwidth Settings	Bandwidth	By default, the corresponding bandwidth is allocated according to the account level, or you can pay extra according to actual needs.
	Nighttime bandwidth acceleration	from 8:00 to 8:00 the next day, the bandwidth speed is increased by 100, and the speed is not less than 5Mbps; The larger the bandwidth base, the faster the night
Security Settings	Access rules	Support mapping setting access password for secondary verification access; Support setting specified password, IP, time, browser, system and other methods to apply access restriction [**Click to view access control help tutorial**]

2.2 Mapping Management

(1) View Mapping

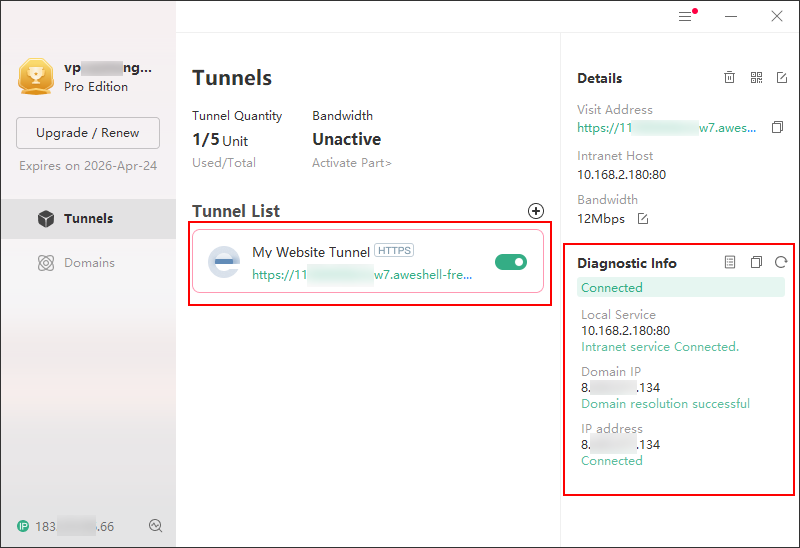

After a mapping is added, you can view the newly added mapping information on the main page, and the diagnostic information of the current mapping is displayed on the right side of the client.

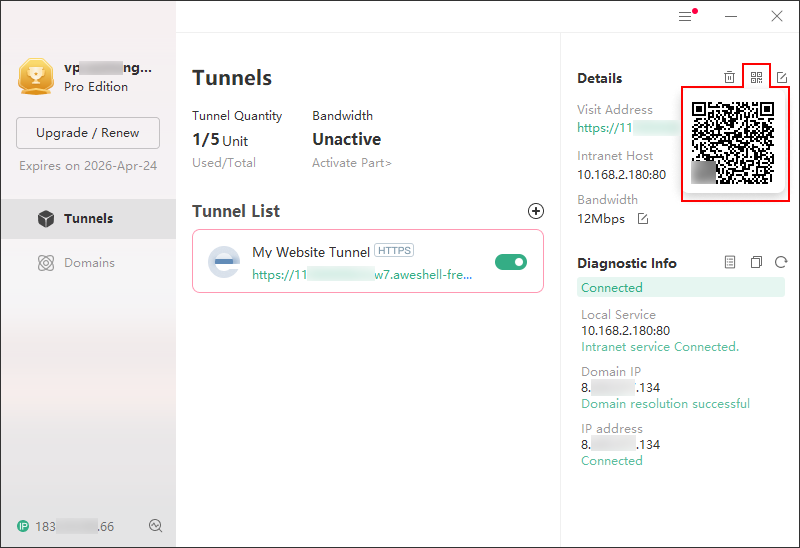

(2) Share mapping
Click to share this mapping address through two-dimensional code.
Note: Two-dimensional code sharing is only supported when the mapping type is HTTPS.

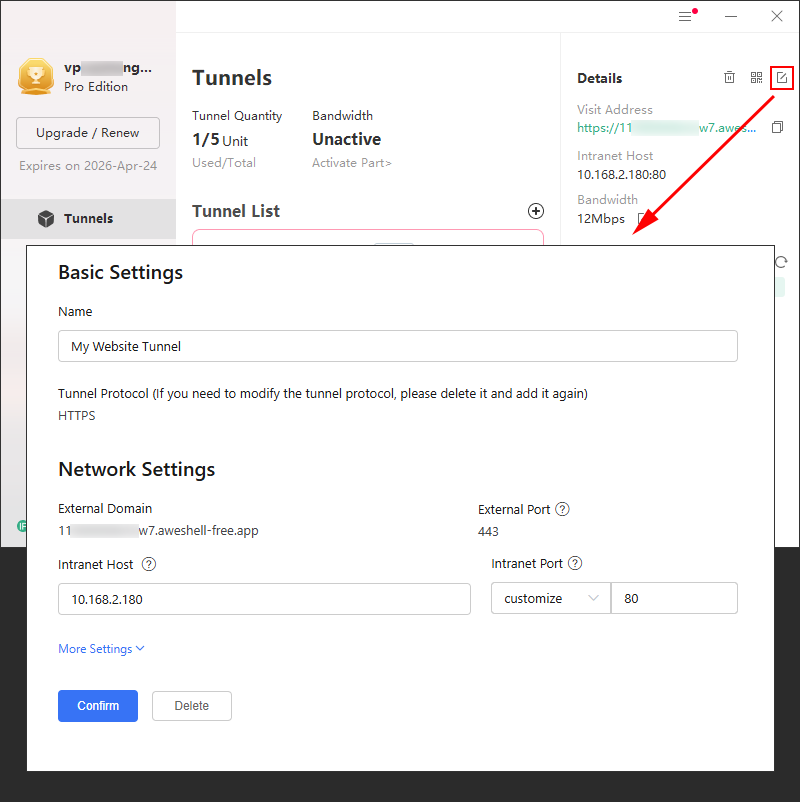

(3) Edit Mapping
Click the button to jump to the Aweshell management platform to modify the mapping information.
Note:
① The Aweshell program maps local intranet services to achieve extranet access
② If remote login is Aweshell, the set local intranet service mapping will be invalid
③ If services in multiple locations need to be published, it is recommended to use multiple accounts for mapping operations

3. Domain Name Management

Displays information about the domain name under the current account.
① Displays the total number of domain names under the current account, including the number of top-level domain names and shell domain names.
② Click the to jump to Aweshell the domain name list of the management platform for more operations, such as viewing the subdomains of the domain name, renewal, etc.
③ Mapping switch of the domain name under the current account
④ Detailed information, diagnostic information and diagnostic intranet service of the selected domain name

4. Related Settings

4.1 client settings

Click <三> in the upper right corner of the client to enter the settings of the client.

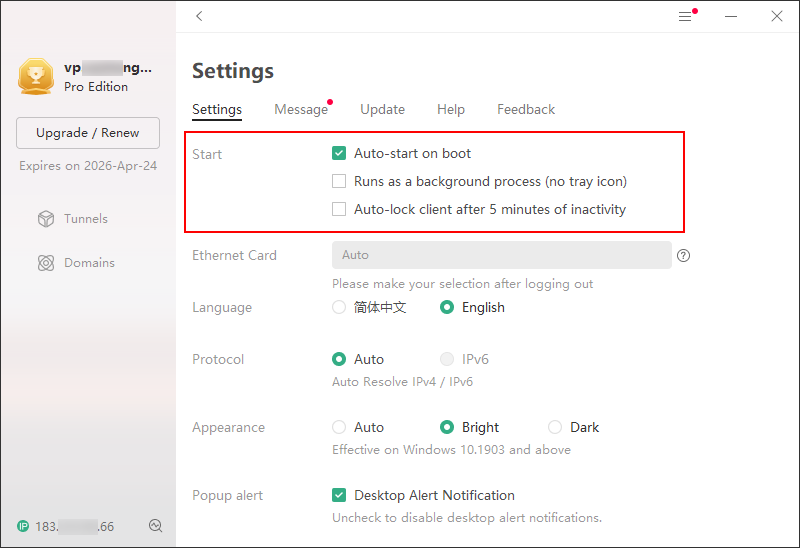

(1) regular Settings

Options	Description
Boot Boot Aweshell	Sets whether the Aweshell client follows the system boot
Run as a service only (no taskbar icon)	You can set the Aweshell client to run as a service process without showing customers in the lower right corner of the computer taskbar
If there is no operation for 5 minutes, the client will be automatically locked	If the client program is not operated for 5 minutes, the client will automatically enter the locked state, and an account number must be entered.

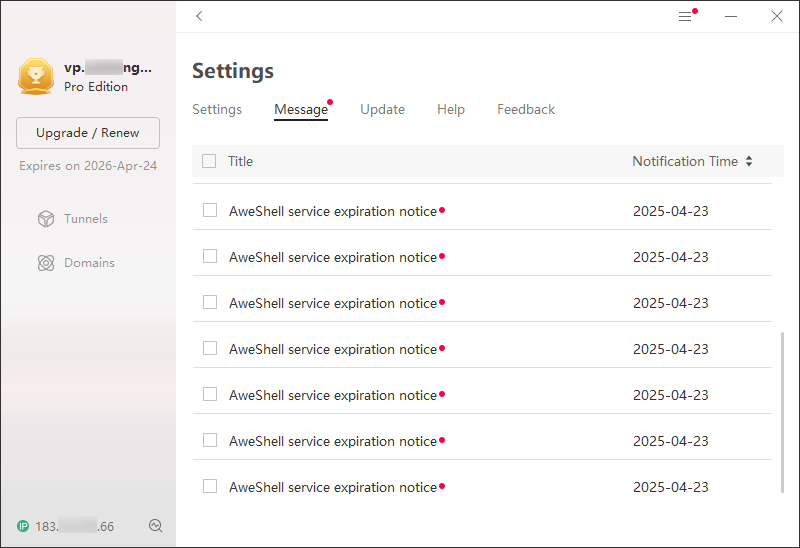

(2) Message
Push client login anomalies and other related information.

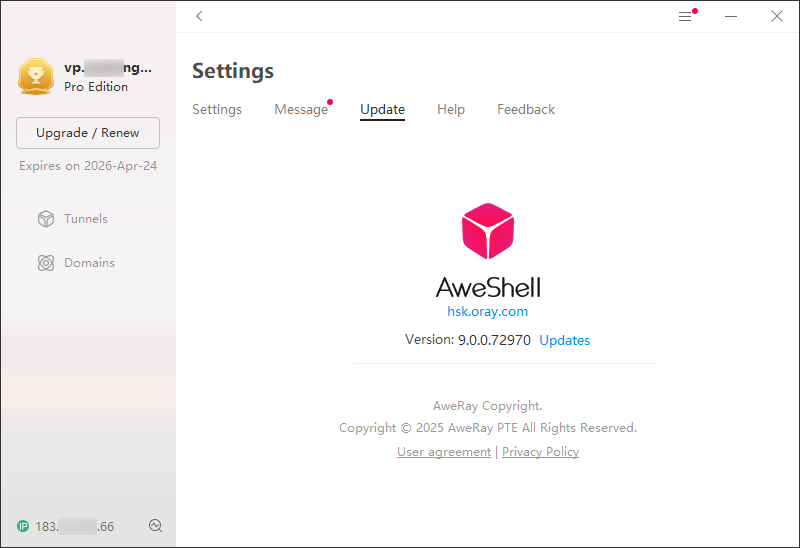

(3) Update
Displays the version number of the current client. You can also check the update status of the client.

(4) Help
Check the service code, registration time, login location information (IP, region, broadband), operating system, and local intranet IP.

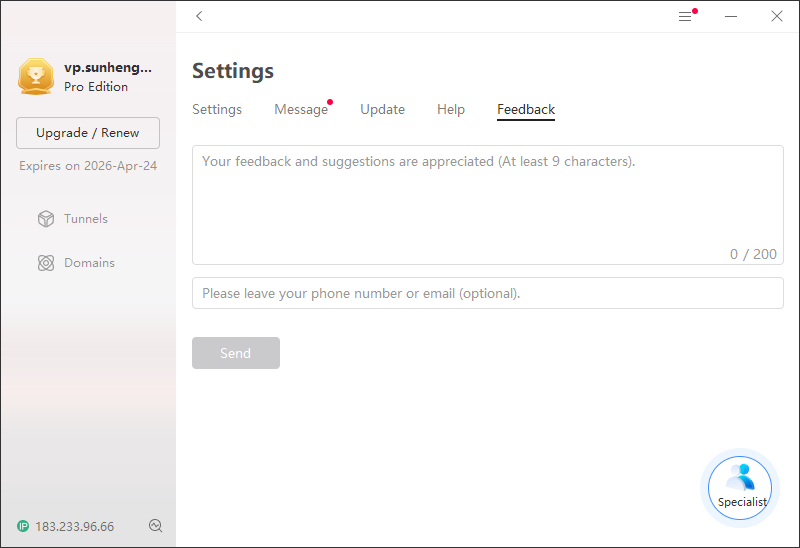

(5) Feedback
Fill in your comments and suggestions in the process of using Aweshell software to promote software optimization.

4.2 Other settings

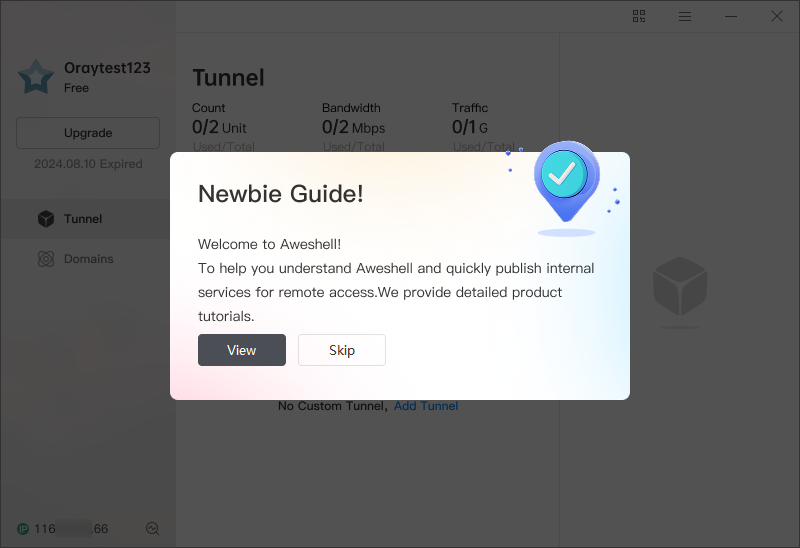

(1) Guide
To help you understand Aweshell and quickly publish internal services for remote access.We provide detailed product.

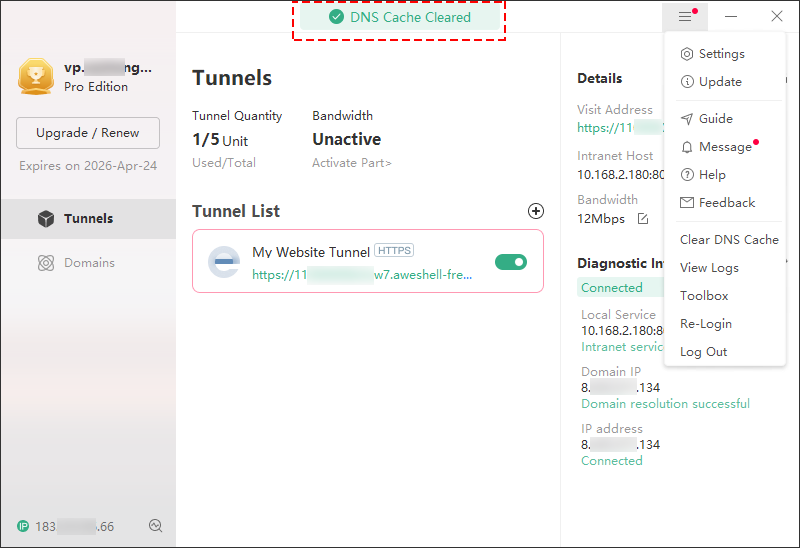

(2) Clear DNS cache
Click to clear the DNS cache of this machine and update the domain name pointing to it in time.

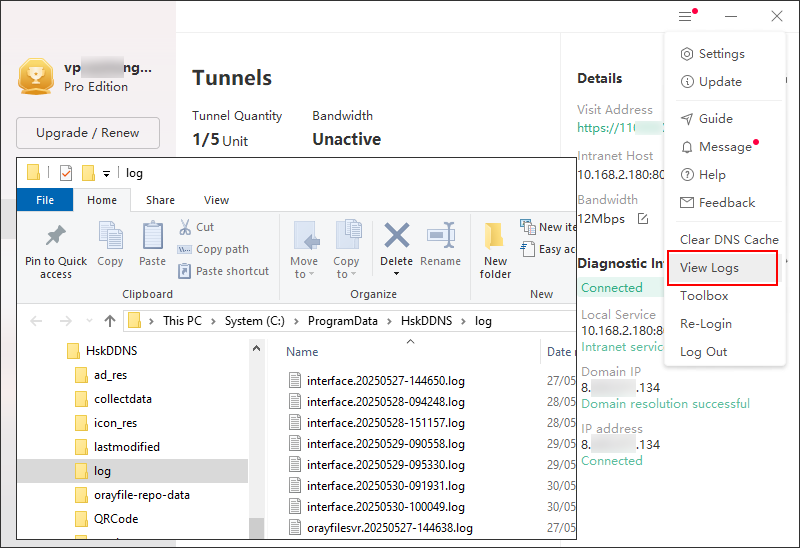

(3) View log
Logs are used to record exception information during client operation to help you quickly locate problems that occur during client operation.

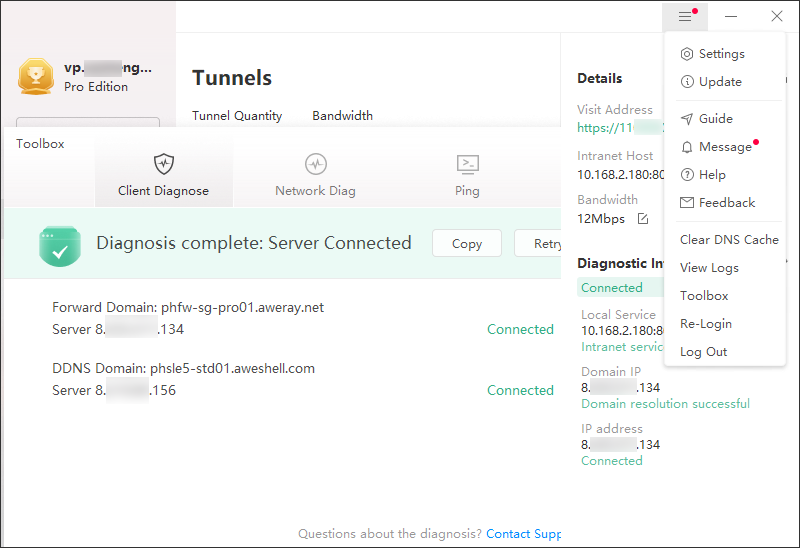

(4) Toolbox
Click the "Toolbox" button at the bottom left to use the diagnostic toolbox to assist in troubleshooting intranet penetration abnormalities.

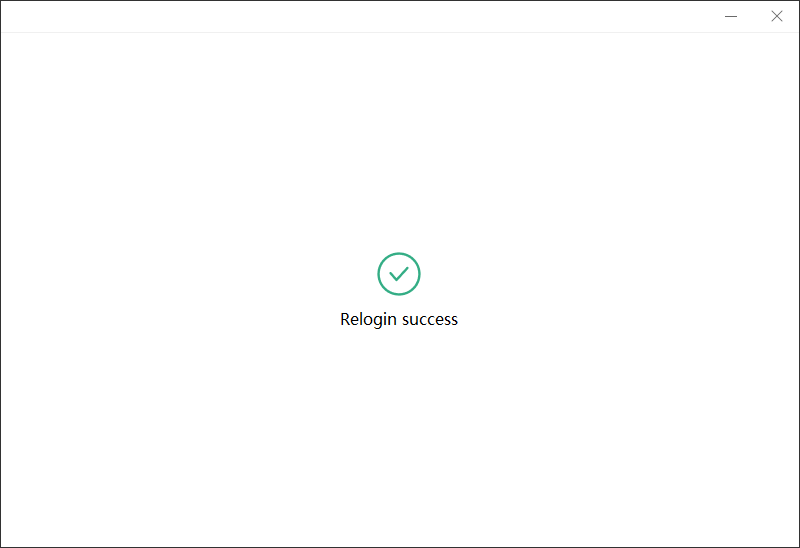

(5) Re-entry
Log in to the current Aweshell account again.

(6) Logout Login
Log out of the account of the current client.
