1 minute to build a private cloud disk and achieve external network access
Update Date：2025-05-09 14:51:25
This article shares a tutorial on a simple private cloud disk. You can build an encrypted private cloud disk system by selecting Aweshell + kiftd, without professional technology, expensive hardware and complicated configuration process.
Kiftd is a private network disk system for individuals, groups and small organizations, no need to install, double-click to use. It only takes 3 minutes or less to deploy a cloud disk system.
1. Build a private cloud disk
(1) Download kiftd to the local computer; !
(2) Decompress the kift installation package and double-click the program in the figure to run it directly (if the computer does not have a Java environment, download and install it according to the system prompt); !
(3) The main interface of the kiftd file system server is "stopped" by default. Click "Open" and the server will start successfully; If the server is not started successfully, check whether the default port is occupied and modify it to other ports (click "Settings" in the "Stop" state of the server to modify it); !
(4) Click
(5) Test the functions of accessing the file server and uploading files. Enter http:// 192.168.1.101:8080 in the browser, and the access is successful. Click login in the upper right corner, enter the default user name admin and password 000000, and you can experience your own private cloud disk. Cloud disk interface function as shown below: ① Upload: Directly drag the file to the browser to upload, or click " Operation " button in the upper right corner to upload; ② Download: Click the Download button to the right of the file to be downloaded. !
The private cloud disk in the internal network has been built. If you want to access the cloud disk in the external network, you need to use Aweshell software to penetrate the internal network.
Please see the Aweshell configuration steps below:
2. Configure Aweshell
2.1 installation login

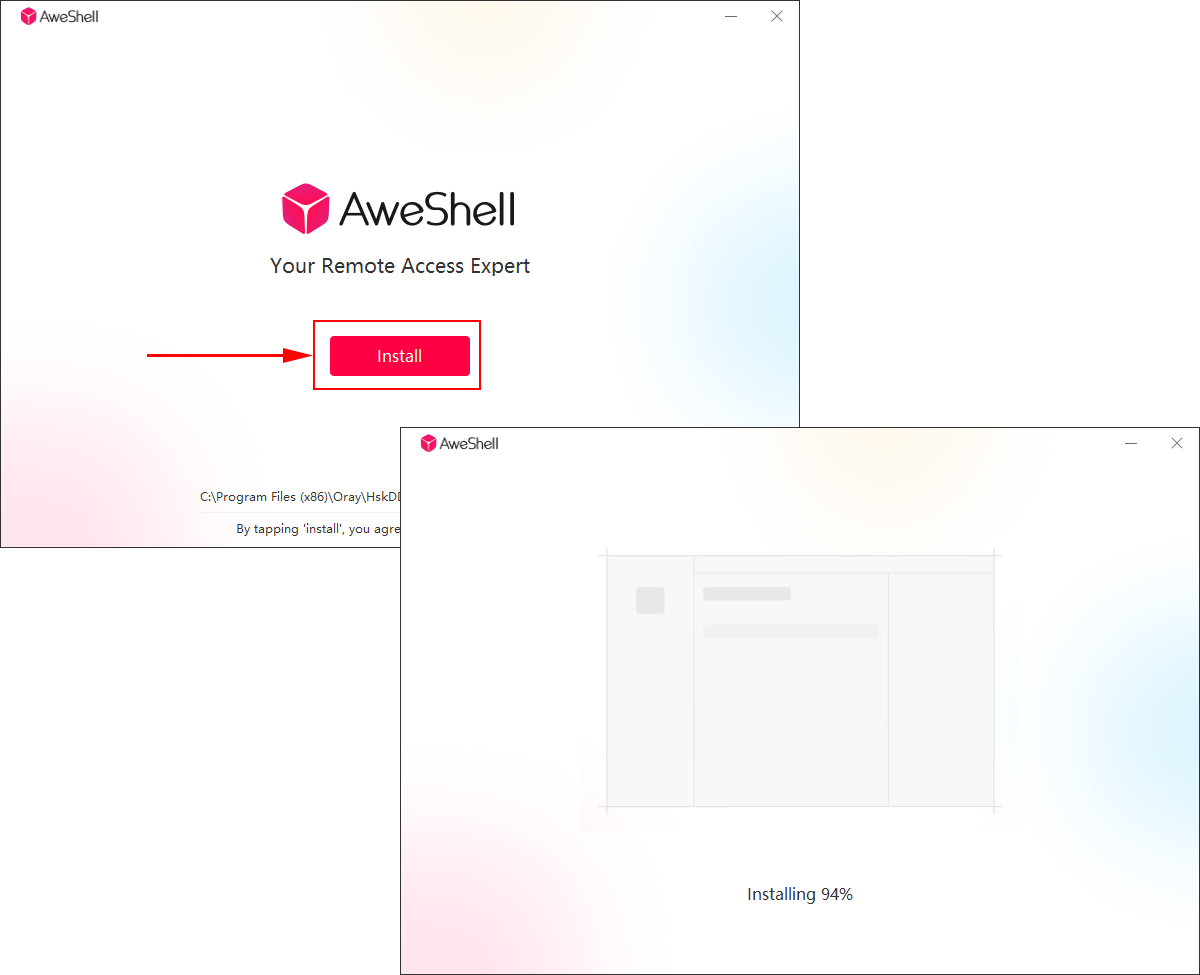

(1) We need to download the latest version of the Aweshell software to the computer, and then double-click the program to start the installation ( Download Aweshell ); !
(2) After the Aweshell is installed, enter the Aweray account number and password in the login window to log in; !
2.2 setting mapping
(1) The Aweshell supports setting mappings on the client or Web management platform. The client settings are shown in the following figure. Click [+] on the interface to jump to Aweshell management platform to add mappings. !
(2) In Aweshell Management Platform [Intranet Penetration], click <Add Mapping> to add a mapping. !
(2) Fill in the mapping information of the private cloud disk:
| Serial | Option | Description |
|---|---|---|
| ① | Mapping Type | Select "Website Application", which is suitable for web sites and supports port 80/443; The external network can be directly accessed by entering the domain name through the browser |
| ② | Application Name | Custom Fill |
| ③ | Mapping protocol | HTTPS: used to create an encrypted and secure website. It can be accessed from a browser. The external network port is 443. The Aweshell has automatically deployed an SSL certificate. No additional local deployment is required. " Note ": Only one HTTPS mapping can be added to a domain name. HTTP: used to build an HTTP website. It is not encrypted. The default port is 80 |
| ④ | Extranet domain name | The domain name used for external network access. Select the domain name owned by the account. If you use HTTPS protocol, you need to select the domain name of the HTTPS mapping certificate owned by the account. |
| ⑤ | External Network Port | Select the port to be filled in when accessing the external network. HTTPS external network port external network port 443;HTTP external network port defaults to 80, select the port required for external network access. The dynamic port is the port number randomly generated by the system and cannot be restored after the mapping is deleted. Fixed ports are supported (can be reused after the mapping is deleted) |
| ⑥ | intranet host | mapped server intranet IP address |
| ⑦ | Intranet port | The mapped service server intranet port |
| ⑧ | Bandwidth | By default, the corresponding bandwidth is allocated according to the account level, or it can be purchased at an additional cost according to actual needs |
| ⑨ | Night Bandwidth | From 18:00 to 8:00 the next day, the bandwidth speed is increased by 100, and the speed is not less than 5Mbps; The larger the bandwidth base, the faster the night |
| ⑩ | Access Rules | Support mapping and setting access passwords for secondary verification access; Support setting specified time, region, IP, browser, system and other methods to apply access restrictions [Click to view access control help tutorial] |
Confirm that the mapping content is filled in correctly and click "Save. !

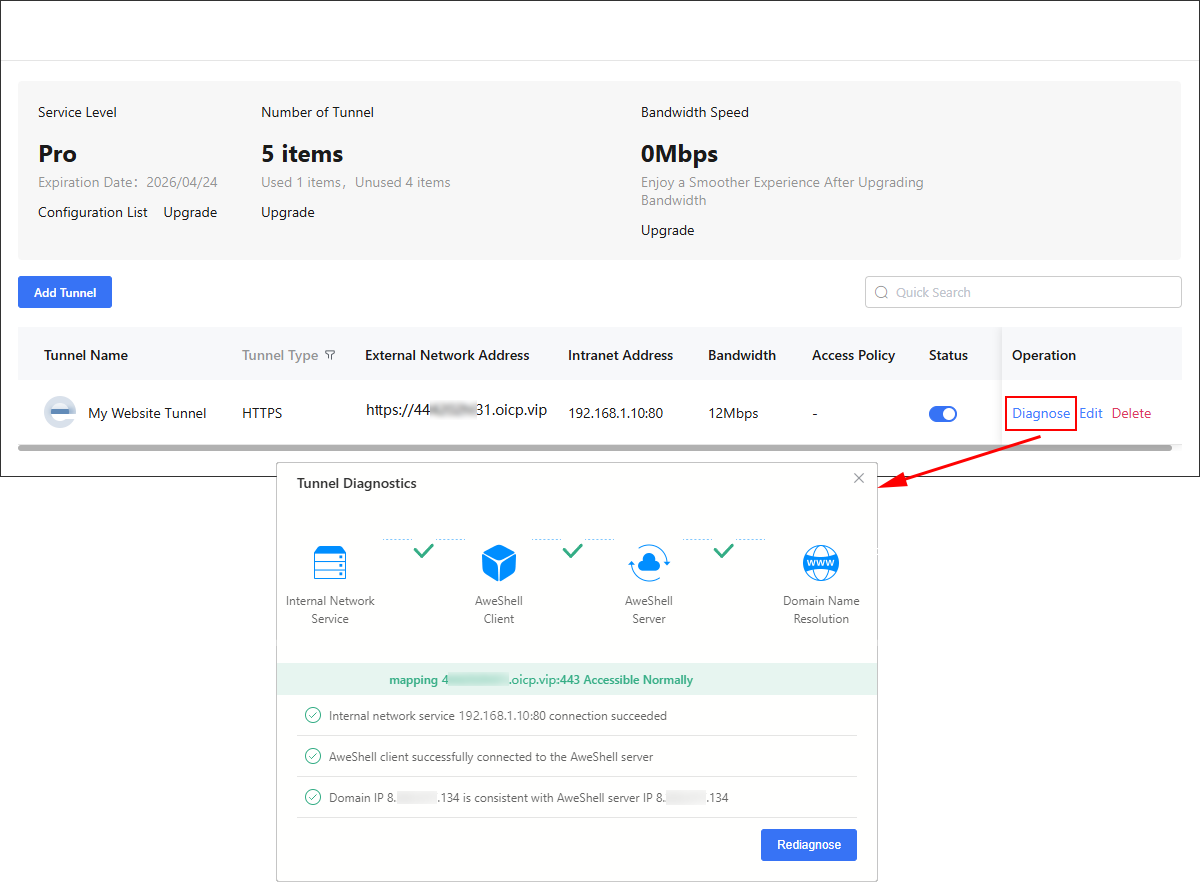

(3) At this time, an external network access address of https will be generated. Click " Diagnosis " in the lower left corner of the map to prompt that the map can be accessed normally. !
! Note: ① The Aweshell program maps local intranet services to achieve extranet access ② If remote login is Aweshell, the set local intranet service mapping will be invalid ③ If services in multiple locations need to be published, it is recommended to use multiple accounts for mapping operations
3. Remote access to cloud disk

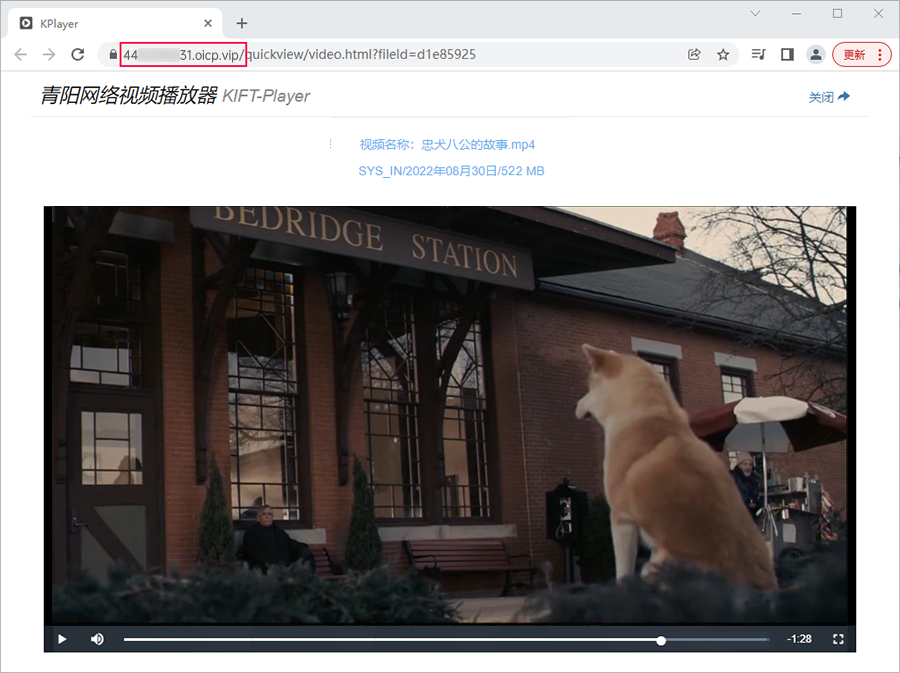

In the external network, use the encrypted address generated by Aweshell mapping to access the private cloud disk, you can view the data on the private cloud disk online.
By Aweshell the address mapped by HTTPS, the security lock is displayed in the address bar of the browser to implement encrypted access between the user and the server. In an application scenario of a private cloud disk, private information of the cloud disk can be effectively prevented from being stolen. Moreover, digital certificates are automatically deployed on Aweshell servers, and users only need to build cloud disks locally, helping users to realize remote encrypted access to private cloud disks with the fastest speed and the least cost. !
