When the database server is deployed in the intranet, the devices in the local area network can easily access the database. If the network environment where the database server is located does not have public network IP, or does not have router/optical cat management rights, the database of the internal network can be accessed from the external network through the internal network of the Aweshell.

The following is an example of SQL Server to introduce Aweshell intranet penetration to achieve external network access to the intranet database:

1. Open Remote Desktop

Deploy the SQL Server database locally and ensure that the devices in the local area network can be accessed through the intranet IP address.

2. Add regular Application Class Map

(1) Install and log in the Aweray Aweshell client on the server where the database is deployed or on the terminal device that can access the database intranet. On the [Intranet Penetration] of the client, click " + " to add a mapping and jump to the Aweshell management platform to fill in the new mapping information.

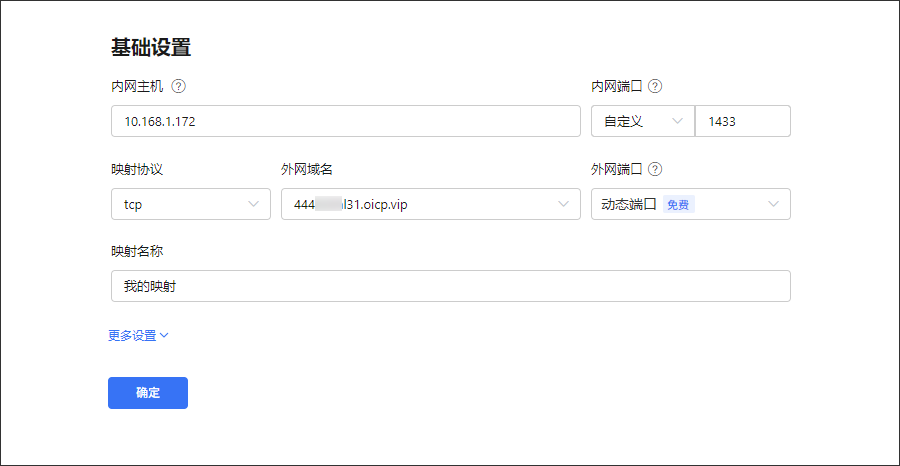

(2) Add regular application mapping

Content		Description
Mapping Settings	regular application	Suitable for remote desktop, SSH, database, online games and other common TCP applications, does not support browser access
Basic Settings	Application name	Custom mapping name
	Mapping protocol	Select TCP
Internal and external network settings	Extranet domain name	Select the domain name used to remotely access the database from the Internet.
	Extranet port	Dynamic port, automatically assigned port number; fixed port number can be selected according to the actual situation
	Intranet host	IP address of the database accessed from the intranet
	Intranet port	Port number of the database, SQL Server:1433;MySQL:3306

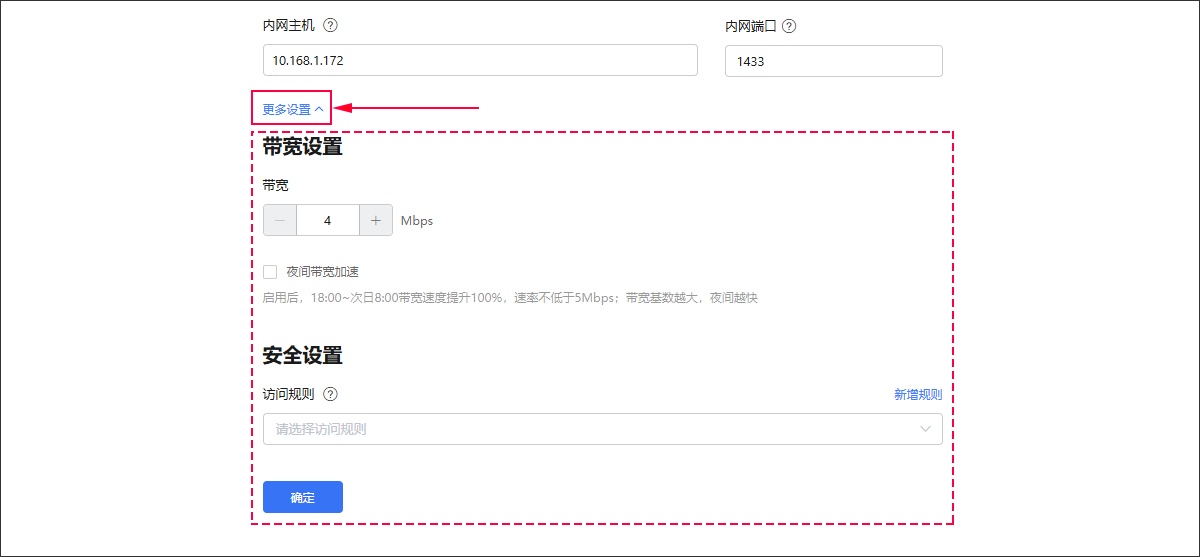

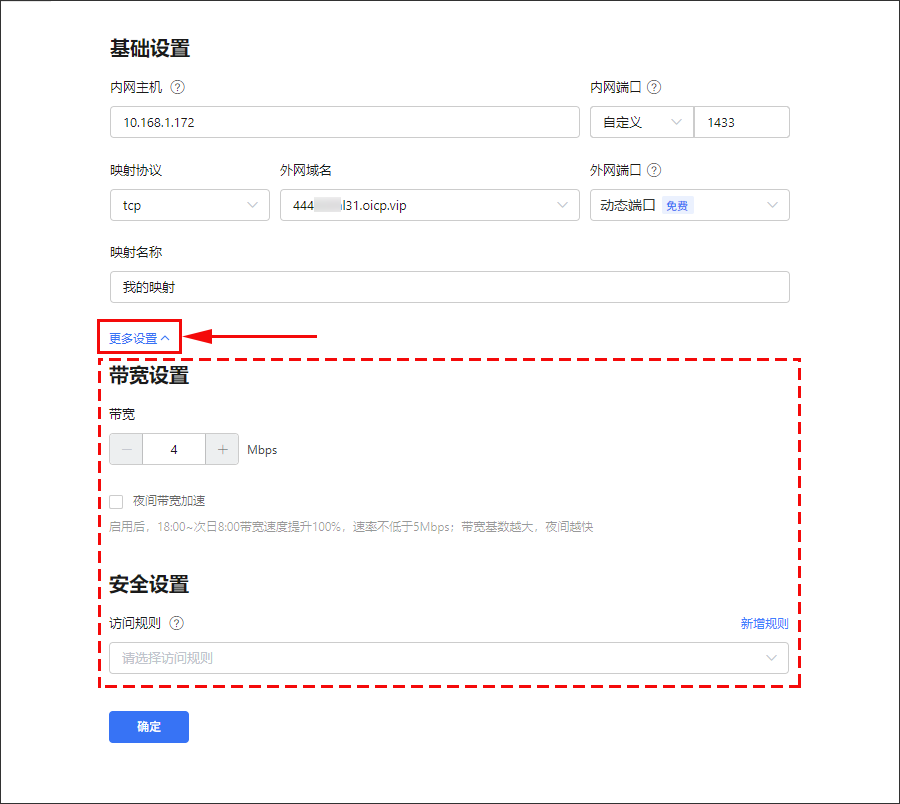

If you have bandwidth or security requirements, you can click [More Settings] to set the relevant settings.

Content		Description
Bandwidth Settings	Bandwidth	By default, the corresponding bandwidth is allocated according to the account level, or you can pay extra according to actual needs.
	Nighttime bandwidth acceleration	from 8:00 to 8:00 the next day, the bandwidth speed is increased by 100, and the speed is not less than 5Mbps; The larger the bandwidth base, the faster the night
Security Settings	Access rules	Support mapping setting access password for secondary verification access; Support setting specified password, IP, time, browser, system and other methods to apply access restriction [**Click to view access control help tutorial**]


(3) After the mapping is added, the database can be accessed through the external network address.

3. Connect to the database remotely

Copy the external network address and paste it into the database login window to log in and connect to the database.
